Stretch Wrap Machines



Overview



Stretch wrapping machines from LINC Systems lower the overall cost of operations and increase profitability by enhancing productivity, reducing costly bottlenecks, eliminating downtime, and providing better pallet load containment.

We offer turn-key installations, system integrations, spare parts, preventative maintenance programs, and all of the materials to support your equipment. LINC System customers also enjoy post-sale support, training, and ongoing access to technical service.

Click Here for Sustainable Material Options.



Benefits of Working with LINC Systems



LINC Systems offers a full line of automatic and semi-automatic stretch wrapping machines. We carry top-rated brands such as Orion, Robopac, and Wulftec.

Available options include rotary turntable stretch wrappers, rotary tower stretch wrappers, orbital stretch wrappers, and custom-engineered automatic stretch wrapping systems.

Our extensive experience, smart technology, and customer-centric focus make us the right choice for North American and global distributors.




Orion-Logo

ORION pallet wrapping machines are rugged, durable, and come in a wide range of configurations such as rotary tower, fully automatic, semi-automatic, and orbital. They boast loads of useful features such as touchscreens, adjustable parameters, and access to stored wrap programs.



Orion Products:


Orion-Sentry

ORION SENTRY LP Semi-Automatic

The Orion Packaging Sentry LP is an entry-level, semi-automatic turntable style pallet wrapping machine for economical and efficient unitization of pallet loads with stretch film. The Sentry LP can dramatically increase efficiency and lower film cost per load, especially compared to manually applying stretch film by hand.

Product Specifications

  • Rotation Speed: Variable to 12 RPM
  • Max. Height: 80”
  • Max. Load Size: 52” x 52” x 96”H (108” option)
  • Max. Load Weight: 4,000 lbs.
  • Film Prestrech: 200%
  • Film Tension Control: Adjustable
  • Display Panel: 5.7” Intellivue Color Touch Panel
  • Electrical: 120 VAC, 60 cycle, 1 phase, 15 amps
  • Machine Weight: 1,650 lbs.
  • Warranty: 3 years

ORION FA Fully Automatic

Orion Packaging's rugged and reliable fully automatic FA turntable stretch wrapping system is unsurpassed in quality and performance. The FA is engineered for long-term reliability in even the harshest industrial environments, so you can count on maximum uptime. Additionally, the film delivery system on the FA will help you reduce costs with every load you wrap.

Product Specifications

Turntable & Load Other Features
  • Turntable RPM: Variable 1-15 (Optimally up to 25)
  • Loads per Hour: 40-70
  • Maximum Load Weight: 4,000-6,000 lbs.
  • Maximum Wrap Height: 80” up to 95” or 110”
  • Maximum Load Size: 48”x48”x80”H
  • Maximum Load Height: 30”x30”x15”H
  • Conveyor Type: Powered chain driven roller
  • Conveyor Speed: 30 FPM with soft-start
  • PLC Controller: 80 PSI @ 6 CFM
  • NEMA Rating: NEMA 12
  • Film width-Film Carriage: 20”
  • Film pre stretch: 260% (optional 100%-300%)
  • Base Frame & Film Mast: Structural steel tubing
  • Warranty: Components (3yrs), Structural Frame (5 yrs), Prestretch Rollers (Lifetime)

ORION Orbital

Orion's Constellation Series orbital automatic stretch wrapping machines are designed for stretch film unitization of long loads which cannot be wrapped on conventional stretch wrap machines. These orbital wrappers are available with a variety of ring sizes and can be adapted to a wide range of horizontal wrapping applications.

Product Specifications

  • Automatic operation saves labor costs, improves efficiency and package appearance
  • Orbital wrapping method well-suited for long, difficult load types
  • Hand crafted with 100% structural steel for high stability and long service life
  • High performance film delivery system yields 245% prestretch (standard)
  • Ring sizes available: 15", 25", 40", 60", 80"
  • Automatically adjusts for various load widths & heights
  • Ring rotation speeds from 20 rpm to 100 rpm depending on ring size & application
  • Single or twin film carriages available to best fit cycle speed requirements
  • Rotational safety photo eyes stops machine if beam is broken
  • State-of-the-art Allen Bradley PLC Controller for maximum reliability and flexibility
  • Non-proprietary replacement parts can be purchased locally or from dealer
  • Dramatically reduces packaging costs by replacing corrugated, strap, string, tape
  • Warranty: Components (3yrs), Structural Frame (5 yrs), Prestretch Rollers (Lifetime)

ORION HPD High Profile Deluxe

The Orion Flex line, as well as the Sentry, are all designed and built for superior performance, maximum reliability and economical operation. With a wide range of models and options, you can choose the stretch wrapping machine best suited for your application.

Product Specifications

  • 7” IntelleVue Color Touchscreen
  • 6,000 lb. Max. Load Weight
  • 15 RPM Variable Speed Turntable
  • 48”x48” Turntable for Loads up to 55”x55”
  • Precision Ring Bearing Turntable Support
  • Automatic Film Force to Load Control
  • Auto Height Detection Photoeye
  • Maintenance-free AC Motors
  • 3-5 Year Warranty

ORION LPA and HPA Stand Alone Automatic

Orion’s LPA and HPA Turn Table Stretch Wrappers allow you to place the pallet load on the machine and pull a lanyard switch while backing away. The Flex automatic machines perform the entire wrap cycle without the operator dealing with the film tail at the beginning or end of the cycle — significantly impacting your efficiency by freeing operators to work on other tasks while the machine is wrapping.

Product Specifications

  • Automatic Wrap Cycle for Operator Efficiency
  • 7” IntelleVue color, HD touch screen HMI
  • 15 RPM variable speed with “soft start”
  • 6,000 lb. maximum load weight capacity - Orion's universal base uses a robust ring bearing design
  • Film saving 260% powered film pre-stretch
  • Automatic force to load for even film tension
  • AC/VFD motors reduce maintenance
  • Forklift portable from front or rear
  • Structural steel frame for durability



Wultec-Logo

Wulftec stretch wrappers are very durable and allow increased flexibility for various sized loads. Their automatic, semi-automatic, or rotary arm pallet wrappers will help increase efficiency and save money.



Wulftec Products:



Wulftec Semi-Automatic SMART Series Turntables

The Wulftec SMART Series is a competitively-priced series of semi-automatic low and high-profile turntable stretch wrapping systems—a smart approach to semi-automatic stretch wrapping.

Product Specifications

High Profile Turntable Models (SMH) Low Profile Turntable Models (SML)
  • Models 150, 200, SPL, HVY
  • Capacity: 4,000 lbs. - 8,000 lbs
  • Wrap Height: 80”, 92” 104”, 116”
  • Carriage: 20” or 30” NO-Thread powered pre-stretch carriage
  • Carriage: 20” or 30” no pre-stretch carriage
  • Control Panel: Basic (B), Standard (S), Standard Plus (SP) Deluxe (D)
  • Max Load Size: 58”L x 58”W
  • Warranty: 5-year unlimited cycle, 10-year on structural steel frame, 10-year on 25” ring gear bearing (SMH-HVY), Lifetime on pre-stretch rollers’ blue compound
  • Models 150, 200, EXT, 277
  • Capacity: Low Profile (SML) 4,000 lbs.-5,000 lbs.
  • Wrap Height: 80”, 92” 104”, 116”, 128”
  • Carriage: 20” or 30” NO-Thread powered pre-stretch carriage
  • Carriage: 20” or 30” no pre-stretch carriage
  • Control Panel: Basic (B), Standard (S), Standard Plus (SP) Deluxe (D)
  • Max Load Size: 50”L x 50”W - 65” L x 65” W
  • Warranty: 5-year unlimited cycle, 10-year on structural steel frame, 10-year on 25” ring gear bearing (SMH-HVY), Lifetime on pre-stretch rollers’ blue compound

Wulftec Semi-Automatic WRT Series Rotary Arms

Compared to turntable models, Wulftec rotary arm models provide increased flexibility for unique load shapes or weights. They can wrap almost anything. Since the load remains stationary, it is ideal for wrapping very light, very heavy, tall, or unstable loads.

Product Specifications

  • Models: WRT-100, WRT-150, WRT-175, WRT 200
  • Production Rate: Up to 50 loads per hour
  • Max Load Weight: Unlimited
  • Max Load Size: 54”L x 54”W x 80” H
  • Controls: NEMA 4/12 control cabinet with quick connect
  • Allen Bradley variable frequency drives
  • Separate up/down carriage speeds
  • Separate top & bottom wrap selectors
  • Autoheight sensing
  • Warranty: 4-year unlimited cycle, 10-year on structural steel frame, 10-year on 25” ring gear bearing (SMH-HVY), Lifetime on pre-stretch rollers’ blue compound

Wulftec Fully Automatic Turntables

Wulftec fully automatic turntable stretch wrappers are ideal for wrapping stable loads of under 8,000 lbs. They are typically less expensive than rotary arm models and have a smaller footprint – a definite asset when space is at a premium.

Product Specifications

  • Models: SMLCA-277, SMHPA-200, SMHPA-300, WCA-SMART™, SMLPA-200
  • Production Rate: 55-70 loads per hour (depending on model)
  • Max Load Weight: 4,000 lbs. - 8,000 lbs.
  • Max Load Size: 52”L x 51”W x 80” H
  • Controls: NEMA 4/12 control cabinet with quick connect
  • Allen Bradley PLC for more flexibility
  • AC variable frequency drives and motors
  • Separate up/down carriage speeds
  • Separate top & bottom wrap selectors
  • Warranty: 5-year unlimited cycle, 10-year on structural steel frame, 10-year on 25” ring gear bearing (SMH-HVY), Lifetime on pre-stretch rollers’ blue compound

Wulftec Fully Automatic Rotary Arms

Wulftec automatic stretch wrappers maximize throughput and efficiency. They take care of everything; you only change the roll of film. An automatic stretch wrapper will save significant time and money. They can keep up with even the most demanding production rates. They can wrap almost anything. Since the load remains stationary, they are ideal for wrapping very light, extremely heavy, tall, or unstable loads.

Product Specifications

  • Models: WCRT-175, WRTA-100, WRTA-150, WRTA-175, WCRT-200, WRTA-200
  • Production Rate: 50-100 loads per hour (depending on model)
  • Max Load Weight: 5,000 lbs. - unlimited on WRTA models
  • Max Load Size: 54”L x 54”W x 80” H
  • Controls: NEMA 4/12 control cabinet with quick connect
  • Allen Bradley PLC for more flexibility
  • AC variable frequency drives and motors
  • Separate up/down carriage speeds
  • Separate top & bottom wrap selectors
  • Warranty: 4-year unlimited cycle (3 years on the WCRT models, 10-year on structural steel frame, 10-year on 25” ring gear bearing (SMH-HVY), Lifetime on pre-stretch rollers’ blue compound)

Wulftec WRWA 200 Horizontal Stretch Wrapper

The WRWA-200 carriage features a loading clamp and rapid-lock film roll device that make loading a snap. Everything can be done in the same area, with easy access to the carriage for simplified re-loading. Maintenance free clamping and cutting device. The user-friendly digital panel interface offers multiple mode selection for more flexibility. Just set, load and go!

Product Specifications

  • Production Rate: Up to 120 loads per hour
  • Maximum load weight limited to conveyor capacity
  • Maximum diagonal load dimension must be 8” (4” on each side) shorter than ring size
  • Electrical Requirements: 230V/3/60 20A
  • Film Delivery System: 20” NO-THREAD® powered pre-stretch carriage with revolutionary spring-loaded carriage gate
  • Available Ring Sizes: 36, 48, 60, 72, 90 or 102 inches diameter
  • Options: Top hold down, Side guides, Transformer, Heat seal, Bridge conveyors, Conveyors (belt, chain, rollers, gravity)
  • Structure: Heavy-duty structural steel construction, Ergonomically friendly film loading carriage position
  • Warranty: 3-year unlimited cycle (3-year on ring bearing, 10-year on structural steel frame, Lifetime on pre-stretch rollers' blue compound)



Robopac-Logo

Robopac semi-automatic pallet wrappers offer a wide range of features such as portability (S7 Model), increased labor savings (~2 minutes per load), and a color touchscreen.



Robopac Products:



Robopac Robot S7

The Robot S7 semi-automatic pallet wrapper can be up and running in less than 30 minutes when installed by a certified LINC Systems technician. Thanks to the intuitive seven (7)-inch icon-driven color touchscreen, it's easy to use. The portability alone can deliver 25% or more in productivity improvement. The Robopac USA pallet stretch wrapper is a GREAT solution for customers with huge loads, as the Robot S7 can wrap loads of any length and width.

Product Specifications

  • Production Speed: Up to 30 LPH
  • Rotation Speed: Variable from 1-3 miles/hr.
  • Cycle Expectancy: 200-250 loads / battery charge
  • Maximum Load Dimensions: Unlimited L x Unlimited W x 86” or 110” H
  • Maximum Load Weight: Unlimited
  • Variable Film Delivery: 0-500%
  • Containment Force: Multi Level Variable
  • Film Width: 20” or 30”
  • Height Sensing” Infrared photocell
  • PVS Carriage: Power stretch system
  • Warranty: 1 year

Robopac Technoplat 708 CS or CW

The Technoplat 708 CS (Clamp, cutting, and sealing unit) or CW (cut and weld) semi-automatic turntable stretch wrapper cuts and attaches the film tail to the load at the end of the wrap cycle for superior load containment. The Technoplat 708 CS/CW pallet wrapper saves two minutes of labor per load by keeping the operator on the fork truck. For the average customer, this translates to labor savings of $29,000 over five years and $60,000 over the machine's life!

Product Specifications

  • Production Speed: Up to 40 LPH
  • Turntable Speed: 5-15 RPM
  • Turntable Drive: 1 HP VAC
  • Turntable Size: 65” Diameter
  • Maximum Load Dimensions: 52” W x 52” L” x 110” H
  • Maximum Load Weight: 4,400 lbs
  • Variable Film Delivery: 100-500%
  • Containment Force: Variable load cell
  • Film Width: 20” ( 30” option)
  • Height Sensing: Automatic via photocell
  • PVS Carriage: Power stretch system
  • Warranty: 5 years

Robopac Orbit R Horizontal Stretch Wrapper

The Orbit R horizontal stretch wrapper line provides high-speed and high performance and can be added to existing work cells or integrated lines. The Orbit R is a rotating ring machine for spiral wrapping elongated products. The machine is equipped with electro-welded mesh safety guards to protect the operator during operation.

Product Specifications

  • Rotation Speed: Up to 80 RPM
  • Ring Diameter: Up to 53"
  • Film delivery system: fractioned roller and quick release; 150% pre-stretch (optional)
  • R-connect ready
  • Automatic film cut-off
  • Constant film tensioning
  • 7” touch screen control panel and Schneider inverter
  • Power supply voltage: 480 V, 3 PH
  • Working Pressure: 87 PSI
  • Photocell detection
  • Automatic machine stop
  • Warranty: 1 year

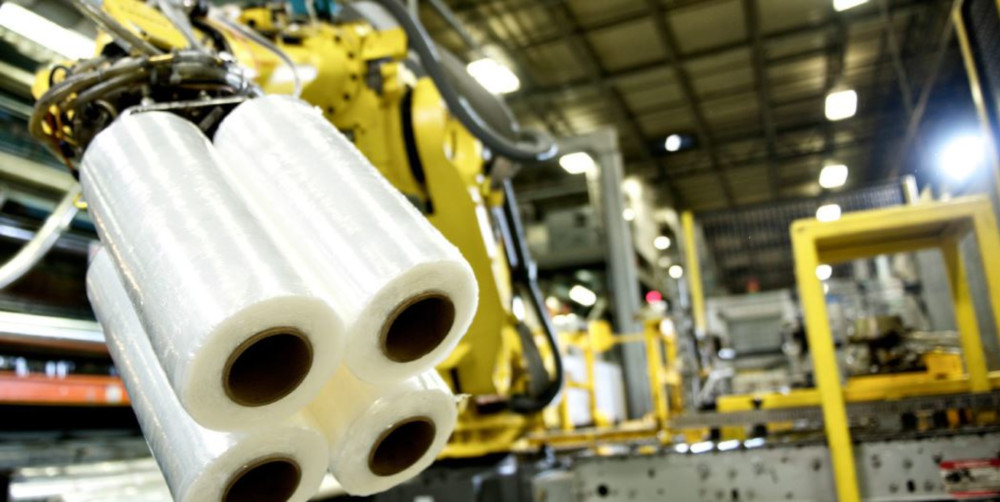

Sustainable Stretch Wrapping Solutions

Berry’s Biovantage Hand And Machine Stretch Film

Biovantage™ Bioresin Stretch Hand and Machine Film - 30% renewable-source content, produced with bio-based polyethylene resin Biobased resin is produced from renewable resources. Both renewable-source and recyclable through LLDPE recycling streams. Lower carbon footprint than virgin or fossil fuel based resin. Options -> Width: Machine 19.7 inch and Hand 15 inch. Gauge: Machine 80 and Hand 80. This is a versatile high performing cast film with one sided cling.

Resources


Berry’s Earthsense Recycled Content Hand Stretch Film

Earthsense® Recycled Content Stretch Hand Film - Produced with 50% Recycled Content* 25% Post Consumer Resin (PCR) | 25% Post Industrial Resin (PIR) *Recycled Content results in a lower carbon footprint. It is a versatile blown hand film meant for quick wrapping and fast cling wipe down.

Resources


Paragon’s Beyond PCR Machine Stretch Film

Designed for 100% Recyclability, Paragon’s Beyond PCR is the world's first ultra-high performance, thin-gauge machine film derived from certified, post-consumer recycled content and Made in the USA for circularity.

Resources


Paragon’s Power Edge PCR Hand Stretch Film

Power Edge PCR is a certified 25% Post Consumer Recycled (PCR) stretch film designed to support circularity. Thinner. Stronger. Greener.® than thicker gauge PCR films available on the market, Power Edge PCR uses less virgin plastic than any hand film on the market.

Resources


We offer the highest-quality brands of industrial packaging equipment, including but not limited to:



If you’d like to learn more please fill out the form below or give us a call at 800.252.5894.
