Automated Palletizer Machines

Arpac Brand Conventional Palletizing

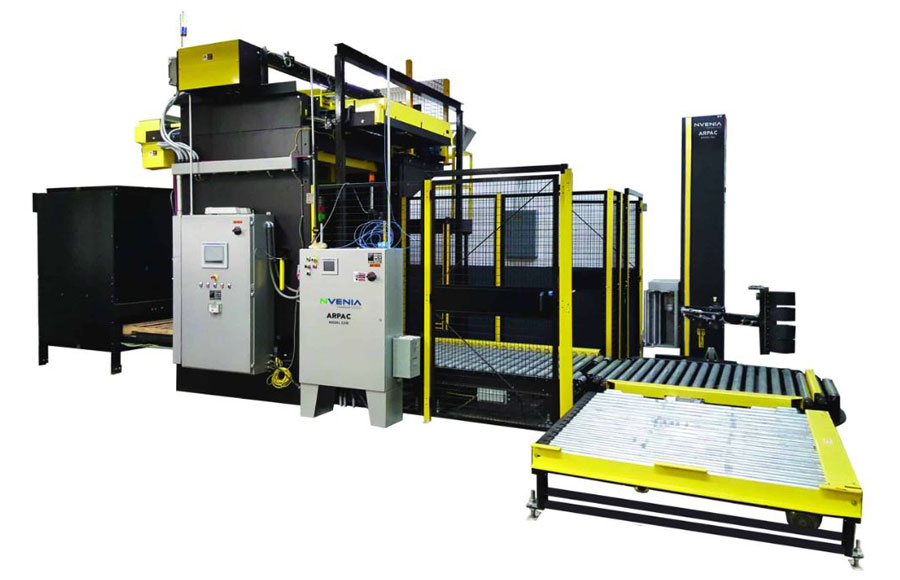

The H1200 and H1300 Models are fully automatic case, tray, bundle, or bag palletizer systems. This machine combines the quality and performance features the industry demands into a single, economical palletizer.

It provides the highest speeds in a reliable, modular, and flexible format. This palletizer is also easily integrated into your complete packaging line. It is available in various configurations and with multiple options to tailor the system to your application.

This system is ideal for applications where the same or similar products are grouped and palletized repeatedly. By employing a high-level infeed, minimal floor space is required.

Only a single operator is required to load and unload pallets. The system eliminates labor-intensive hand stacking and can deliver up to 50 cases per minute depending on layer patterns.

Specifications:	Options and Customizations:
Up to 50 cases per minute (based on layer patterns) Electrical: 230/460v, 3Ph, 60Hz, 30A Pneumatic: 80 psi, 4 SCFM 600 lbs. per layer, 4000 lb. load with 70" high pallet	High capacity intermediate layer forming conveyor Extra load size capacities for all three dimensions Slip sheet and tie sheet dispenser Low-level pallet/sheet detectors Production counters and program controller

Arpac Brand Robotic Palletizer ARBOT

Our Arpac Brand Robotic Palletizer Model is a pre-engineered robotic palletizing cell that automatically stacks and wraps pallets to exact specifications.

It consists of a multi-axis robot, end-of-arm tool, automatic stretch wrapper, pallet dispenser, and conveyance system within a space-efficient footprint. Palletizer cells range from a one-line in/one-line out configuration, up to a four-line in/four-line out configuration to match your application needs.

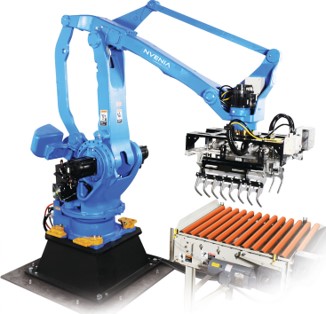

End of Arm Tools (grippers) are matched to the application and range from simple suction cups and vacuum plates, to fork and bag style tools. Custom tool designs are also available to accommodate virtually any product.

The system can accommodate cases, trays, bundles, bags, etc. Speeds vary by application; however, rates up to 60 pieces per minute are possible. An automatic pallet dispenser supplies pallets as needed and can be reloaded while the system is running to maximize efficiency.

Slip sheets and tier sheets can also be placed as needed. After the load is complete, it is transferred to a fully automatic stretch wrapping station, allowing the robot to immediately begin building the next pallet.

Wrapped pallets are then discharged to a staging conveyor for pick-up. For operator safety, a fully interlocked guard system is provided that immediately stops the robot if a perimeter door is opened.

Specifications:

Options and Customizations:

5-Axis 80kg (176lb) palletizing robot accommodates products up to approximately 100 lbs Dedicated robot controller Variety of gripper options for all types of packages 10’ infeed conveyor with pneumatic product separation Automatic pallet dispenser, with 10 pallet magazine and drag chain discharge conveyor 60” pallet build station conveyor Integrated conveyorized turntable stretch wrapper, up to 45 loads/hour 60” pallet discharge conveyor Allen-Bradley® CompactLogix™ PLC PanelView™ Plus 1000 – 10 inch color HMI Heavy duty construction with powder-coated finish

80kg, 100 kg, 160 kg, 190 kg, 300 kg, 500 kg or 800 kg 4 & 5 axis robots Vacuum plate, fork style or bag style end of arm tool (custom designs also available) Layer sheets – gripper tooling and manually loaded sheet rack “Smart” counting style gated infeed conveyor (supports multiple products with no changeover) 2 in / 2 out configuration 3 in / 3 out configuration 4 in / 4 out configuration Full line system integration

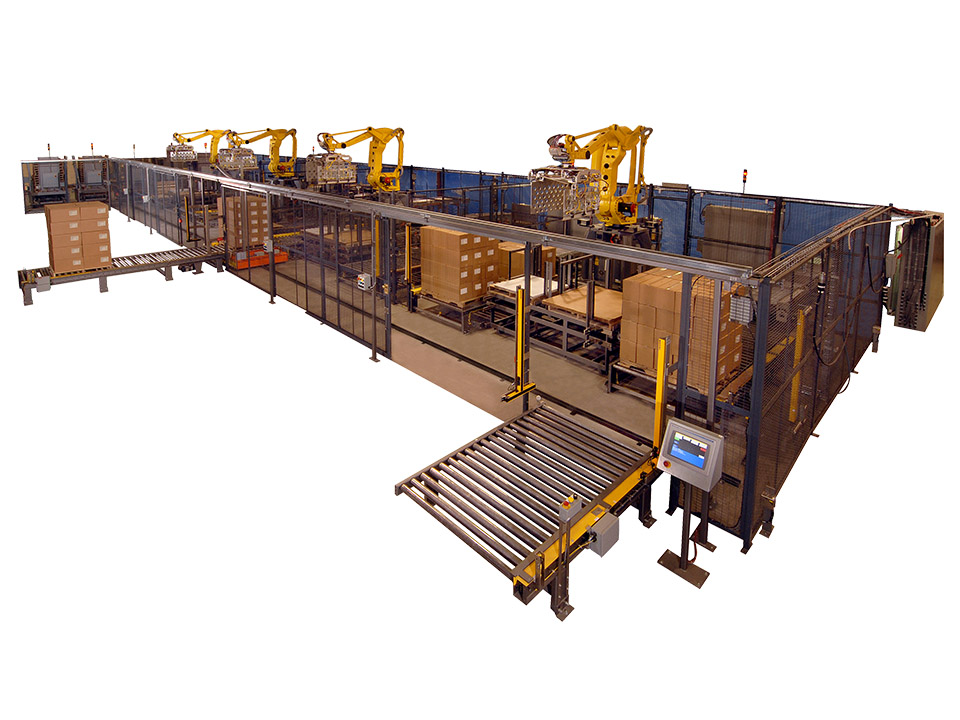

BRENTON Robotic Palletizing & Packaging Systems

Brenton Engineering is deeply committed to robotic packaging systems and has many different options when it comes to picking the right robotic packaging equipment for your needs.

The deep robotic programming and integrating capabilities that the Brenton robotic packaging equipment offers excel in vision-guided pick-and-place for high-speed packing of food, beverages, medical supplies, and other consumer products.

Many different companies advertise FANUC integration into their robotic packaging systems, but only 4% (including Brenton) are Certified Servicing Integrators (CSI).

Specifications:

Options and Customizations:

Ideal for cases, bundles, bags or large objects with complex pack patterns End of Arm Tooling (EOAT) selected to fit an application from either our standard tools or custom designed for the application Quick changeovers with little or no operational change-over and multiple case/carton size handling capability All key robotic functionality is integrated through the HMI / PLC versus through a teach pendant

Integrated pallet building software available Optional Orion Stretch Wrapper integration

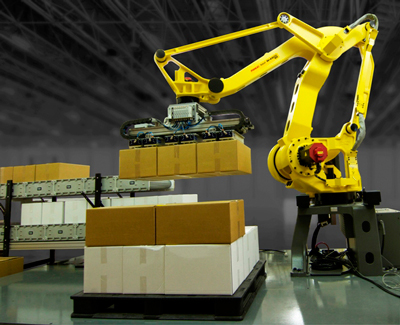

FANUC Palletizing Robots

Whether you are depalletizing products at the front of your line or palletizing downstream, FANUC offers a complete line of robots designed and built to deliver high duty and the world’s fastest cycle times.

FANUC robots have been tackling complex and standard operations for 30 years. Whether you are palletizing a full layer or individual boxes, bags, pails, or drums our systems are fast, steady, and reliable.

Our full line of palletizing robots give you options in terms of size, payload, speeds for cycle time and precision, and most importantly, care in handling your products.
